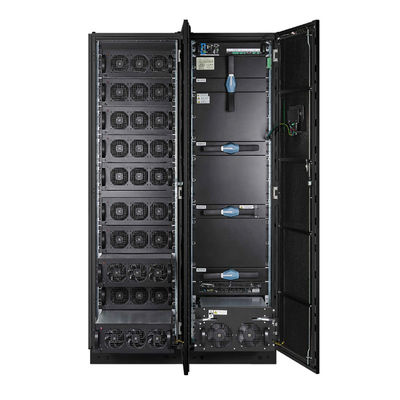

Safe Santak Castle ARRAY 3A3 PT UPS With Lead Acid Battery / Lithium Battery
| Place of Origin | China |
|---|---|
| Brand Name | Santak |
| Certification | CE |
| Model Number | Santak ARRAY 3A3 PT UPS 60KVA～600KVA |
| Packaging Details | cartons |
| Delivery Time | 30days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ARRAY 3A3 PT Series（25kVA～200kVA) | Power Module | 60/62.5kW |
|---|---|---|---|
| Power Factor | 0.99 | Input Voltage | 380/400/415Vac |
| Input Frequency | 50/60Hz | Output Voltage | 380/400/415Vac |
| Output Frequency | 50/60Hz | Overload Capacity | 125%:10min 150%:1min |
| Inverter/Rectifier Topology | Three Level, High-frequency PWM IGBT Modulation Technology | Battery Type | Lead-acid Battery, Lithium Battery |
| Battery Voltage | 432~528Vdc | Communication Interface | RS - 232，Mini-Slot，Modbus/Ethernet，AS/400 |
| Environment Humidity | 5 - 95%, No Condensation | Storage Environment | –15 ~ +55℃ |
| Operating Temperature | 0～40℃ | Altitude | ≤ 1000m |
| Size | 2000*1100*600mm/2069*1100*1200mm | Weight | 375kg/726kg (UPM 39kg) |
| Safety Standard | IEC61000-4 EN5550022/EN55024 ISO 90001:2000 | ||
| High Light | Modularized Santak Castle,CE Santak Castle,ARRAY 3A3 PT UPS |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 3A3 PT 120K | 120K | |
| 3A3 PT 180K | 180K | |
| 3A3 PT 240K | 240K | |
| 3A3 PT 300K | 300K | |
| 3A3 PT 360K | 360K | |
| 3A3 PT 480K | 480K | |
| 3A3 PT 540K | 540K | |
| 3A3 PT 600K | 600K |
Product Description
Santak ARRAY 3A3 PT UPS
SANTAK® ARRAY SERIES MODULAR UPS
ARRAY® 3A3TM PT Modular UPS System Solution 60-600kVA
ARRAY 3A3 PT
ARRAY 3A3 PT is SANTAK’s new generation modularized UPS. An ideal solution for a safe, reliable, stable and green UPS which satisfies any customer’s one-stop demand to a basic power supply solution for their data center with its compatibility with the ARRAY series modular UPS.
The ARRAY 3A3 PT is SANTAK’s latest three/three modularized, digitally controlled UPS. It is the realization of the latest electronics and automation control technology, a benchmark in the UPS market. The ARRAY 3A3 PT brings about a new concept in power supply solution, allowing a breakthrough in the practicability of power usage equipment. ARRAY 3A3 PT applies a tray type, smart modular design that allows for hot plug/play designs, this allows flexible adjustment of the modules to satisfy power and reliability requirements. Zero off line maintenance is also realized by its capability to conduct on line maintenance when modules are idle.
Extra Low TCO (Total Cost of Ownership)
Conserves valuable data center floor space with its compact footprint and internal redundancy design.
Reduces cost and unexpected future growth risks with its vertical scalability, enabling you to scale as you grow.
Reduces power and cooling OPEX through industry- leading energy-efficiency.
• 99% efficiency with ESS
• Up to 97% efficiency in double-conversion mode
The ARRAY 3A3 PT vertical scalability, internal redundancy and compact footprint design
The ARRAY 3A3 PT supports front-to-top ventilation, ideal for against the wall configuration.
Front-to-top ventilation feature also makes the ARRAY 3A3 PT a perfect fit for in-row configurations that support slim chimneys.
The ARRAY 3A3 PT also supports front-to-back ventilation making it great for hot/ cold aisle configuration.
Cable entry
Top and bottom cable entry available
Communications and connectivity
Top and bottom cable entry available
Communications and connectivity
• Built-in device and host USB
• Five alarm inputs and dedicated EPO
• Alarm relay output
• Four communication slots
60kW HOTSWAPPABLE power modules (1~10)
Replaceable centralized STSW modules
600kW with fast protection bypass fuse and back-feed protection
DC start controls
Contained within each power module
Input / output isolations
Contained Input / Output / Bypass / MBS isolation options
Redundancy and speed controllable FANs
7”Colorful display
Replaceable centralized STSW modules
600kW with fast protection bypass fuse and back-feed protection
DC start controls
Contained within each power module
Input / output isolations
Contained Input / Output / Bypass / MBS isolation options
Redundancy and speed controllable FANs
7”Colorful display
The functional core of the ARRAY 3A3 PT
Up to 50% footprint saving Flexible ventilation options
On-line replaceable UPM & STSW & Communication module, MTTR as low as 5 mins
Robust components using oil-filled capacitors & IGBT modules.
Perfect integration with Lithium battery, compatible with multiple Lithiumion BMS
High efficiency UPM module, efficiency up to 97%
Complete power isolation options (Input/ Output/ Bypass/ MBS)
EASY MANAGEMENT
PROVIDES EASIER ACCESS TO DETAILED STATUS INFORMATION THROUGH ITS LARGE, USERFRIENDLY LCD TOUCHSCREEN INTERFACE
With the ARRAY 3A3 PT graphical LCD interface you can track stats on nergy savings, battery time, outage tracking, load profiling and much more.
INTEGRATES WITH THE LEADING VIRTUAL PLATFORMS THROUGH ITS FULL SUITE OF POWER MANAGEMENT AND CONNECTIVITY SOFTWARE
Designed for the most advanced IT environments, the ARRAY 3A3 PT supports optional communication cards that allow remote access via the HTTP(S), SNMP, MODBUS TCP/IP, Modbus RTU and BACnet IP protocols.
