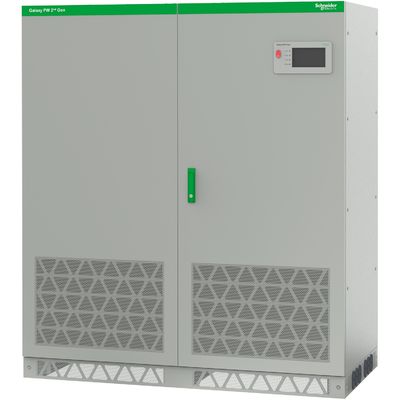

2nd Gen Galaxy PW UPS 100kVA 400VAC 12 Pulse SCR Rectifiers With Input Transformer

  • 2nd Gen Galaxy PW UPS 100kVA 400VAC 12 Pulse SCR Rectifiers With Input Transformer
  • 2nd Gen Galaxy PW UPS 100kVA 400VAC 12 Pulse SCR Rectifiers With Input Transformer
  • 2nd Gen Galaxy PW UPS 100kVA 400VAC 12 Pulse SCR Rectifiers With Input Transformer
Place of Origin China
Brand Name APC
Certification CE EAC RCM
Model Number EPWUPS100KU12PTS
Minimum Order Quantity 1
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lead Time Special Order - Call For Quoted Lead Times Main Input Voltage 400 V 3 Phases
Other Input Voltage 380 V 415 V Other Output Voltage Other Output Voltage
Battery Voltage +/- 216...+/- 300 V Weight 1239 Kg
Dimensions 1800 X 1600 X 800 Mm Topology Double Conversion Online
Efficiency Up To 96% Display LCD
Communication Ports USB, RS232, SmartSlot Frequency 50/60Hz
Form Factor Tower
High Light

2nd Gen Galaxy PW UPS

,

Galaxy PW UPS 100kVA
You can tick the products you need and communicate with us in the message board.
EPWUPS10KU6PS 10 kVA/8 kW
EPWUPS20KU6PS 20 kVA/16 kW
EPWUPS30KU6PS 30 kVA/24 kW
EPWUPS40KU6PS 40 kVA/32 kW
EPWUPS40KU12PTS 40 kVA/32 kW
EPWUPS50KU12PTS 50 kVA/40 kW
EPWUPS60KU6PS 60 kVA/48 kW
EPWUPS60KU12PTS 60 kVA/48 kW
EPWUPS80KU6PS 80 kVA/64 kW
EPWUPS80KU12PTS 80 kVA/64 kW
EPWUPS100KU12PTS 100 kVA/80 kW
EPWUPS120KU12PTS 120 kVA/96 kW
Leave a Message
EPWUPS10KU6PS 10 kVA/8 kW
Product Description

Features

The Galaxy PW second-generation uninterruptible power supply (UPS) is a UPS designed for industrial applications, with DC voltages ranging from 220VDC to 384VDC. It uses reliable 6-pulse or 12 pulse SCR rectifiers. The Galaxy PW second-generation UPS is based on Schneider Electric's over 35 years of experience in the UPS industry, as well as advanced control and power electronics conversion technology, optimized for reliability

The rectifier adopts 6P or 12P thyristor rectification
*Supports dual input
*Standard 40kA TVSS
*Standard Schneider switch
*Input voltage range: 304-456V
*DC voltage: 384VDC
*Overload capacity: 125% for 10 minutes; 150% for 1 minute
*Machine standard configuration output isolation transformer

Benefits

*Standard built-in output isolation transformer
*Standard protection level IP31, optional IP42
*Working temperature 0-50 ℃
*Standard lightning protection module
*Support DC cold start

Application Scenarios

*Petroleum, Petrochemical and Natural Gas
*Metallurgy
*Power plant
*Medical
*Semiconductor
*Airport
*Food and Beverage
*Maritime Affairs
*Mining
*Data center



Overview
Presentation Transformer-based 100 kVA 3-phase input, single-phase output UPS with 6-pulse SCR technology and a 384 VDC internal DC bus. Ideal for industrial applications, this UPS includes 5x8 start-up service.
Lead time Special Order - Call for Quoted Lead Times

Main
Main Input Voltage 380 V 3 phases
415 V 3 phases
Main Output Voltage 380 V 3 phases
415 V 3 phases
Other Output Voltage 380 V
415 V
Rated power in W 80 kW
Rated power in VA 100 kVA
Battery type Li-Ion (Lithium-Ion)
VRLA
Ni-Cd (Nickel-Cadmium)

Batteries & Runtime
Efficiency View Efficiency Graph
action_new_window
Discharge battery voltage 384 V

General
Number of power module 578A
Redundant No

Physical
Colour Light gray
height 180 cm
Width 160 cm
Depth 80 cm
Net weight 1239kg

Input
Network frequency 45...55 Hz
Max short time withstand current 221 kA
Maximum withstand short-circuit current (Icw) 10 kA
Lnput protection type Circuit breaker

Output
Maximum configurable power in W 80 kW
谐波失真 < 2%
Output frequency (synchronized with the main frequency) 50 Hz +/- 1 %
Wave type Sine wave
Output voltage tolerance +/- 1 %
Output voltage THD < 2% linear load and < 4% non-linear load
Overload operation 125% 10Min ,150% 60 Sec
Maximum configurable power in VA 100 kVA





Conformance
Standards IEC62040-3
IEC 62040-1-1
IEC 62040-2
IEC 62040-4
ISTA 2B)
product certifications CE

Environmental
ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...2000 m
Ambient air temperature for storage -25…55 °C
Storage Relative Humidity 10…80 % non-condensing
Storage height 0…10000 m
Sound level 70 dB/1m
Heat dissipation 2798 Btu/h
IPIP degree of protection IP31

Communications & Management
control panel Touch screen LCD user interface

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2085 mm
Package 1 Width 928 mm
Package 1 Length 1728 mm
Package 1 Weight 1341 kg

Contractual warranty
Warranty 1 year on-site repair or replace with factory authorized Start-Up
