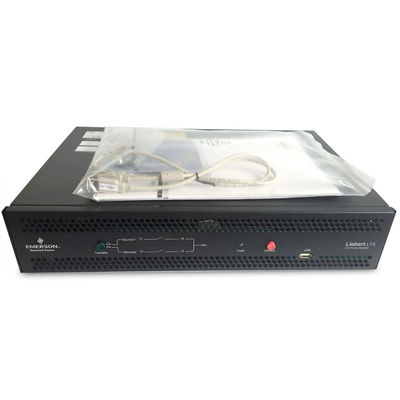

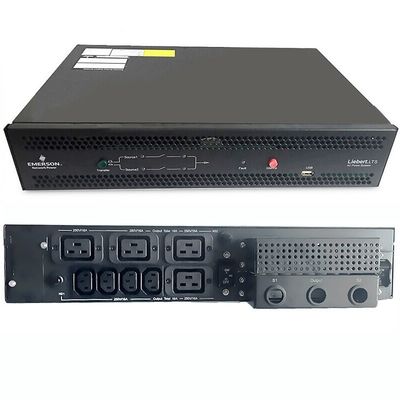

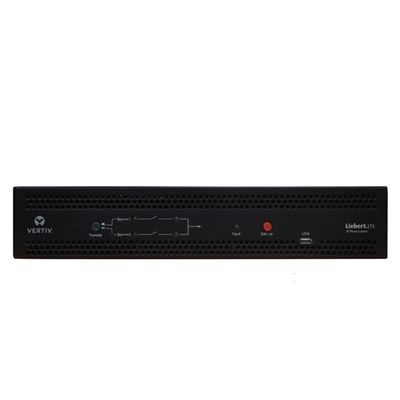

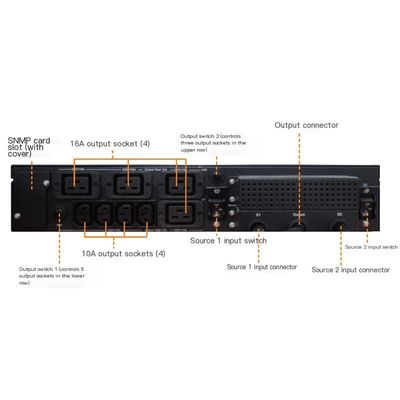

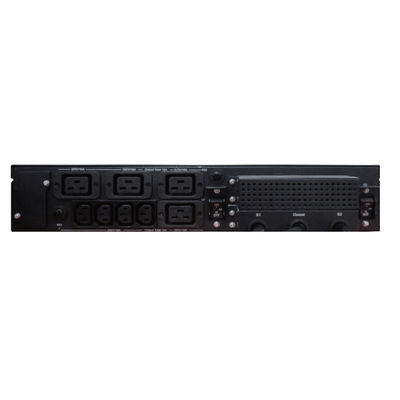

Max. Current 32A 230V C19 VERTIV Liebert STS Static Transfer Switch UF-LTS32-1P IP11
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Vertiv |
| Model Number | UF-LTS32-1P, STS-10/32A |
| Minimum Order Quantity | 5 units |
| Price | $350.00/units >=5 units |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Pole | 3 | Rated Current | 16A |
|---|---|---|---|
| Frame Current | 1 | Max. Current | 32A |
| IP Level | IP11 | Color | White |
| Product Name | STS AC220V Sts Single-phase STS Static Transfer Switch | Type | High Voltage |
| Material | Copper | Rated Current | 10A 16A 32A |
| Rated Voltage | AC 220V | Application | Industrial |
| Highlight | C19 Static Transfer Switch STS,230V Static Transfer Switch STS,32A Static Transfer Switch STS |
||
Product Description
Items | (10A, 16A) Specifications | (32A) Specifications | ||||
Input | Input source | Two AC inputs | ||||
Input mode | 1Ф+N+PE | |||||
Rated voltage | 220/230Vac | |||||
Rated frequency | 50/60Hz | |||||
Voltage range | 150~300Vac | |||||
Frequency range | Rated frequency±5Hz | |||||
Voltage distortion | <10% | |||||
Power factor | 0.75~1.0 leading or lagging | 0.8~1.0 leading or lagging | ||||
Overload capability | 125%, 30min | |||||
Efficiency (100% linear load) | 0.99 | 0.98 | ||||
Number of poles | 2 poles | |||||
Interrupt time for automatic transfer | <6ms(typical value), <11ms(Max value) | |||||
Environmental parameters | ||||||
Items | Normal range | |||||
Operating temperature | 0~40°C | |||||
Storage temperature | -40~70°C | |||||
Relative humidity | 5~95%, no condensation | |||||
Elevation | 3000m | |||||
Mechanical parameters | ||||||
Dimensions (H X W X D) | Weight | |||||
Pure weight of standard unit | Including the weight of parts | |||||
44mm×430mm×250mm (10A, 16A) | 4.5kg | 5kg | ||||
84mm×430mm×340mm (32A) | 5kg | 6kg | ||||
