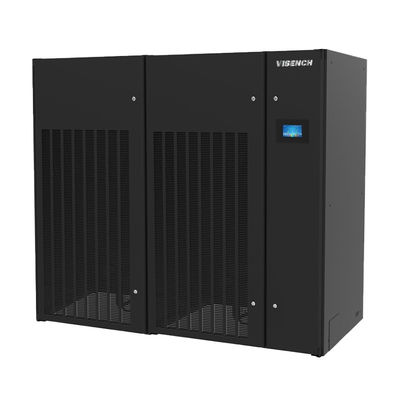

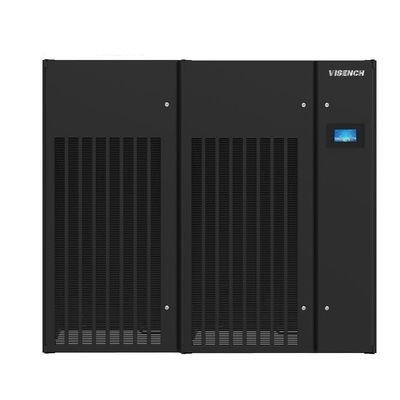

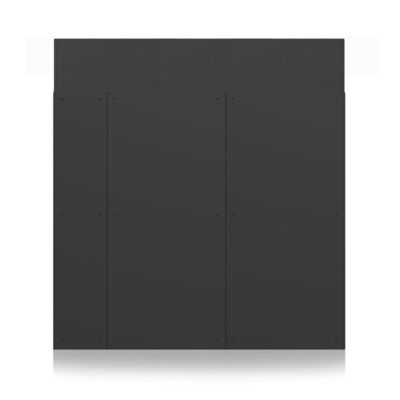

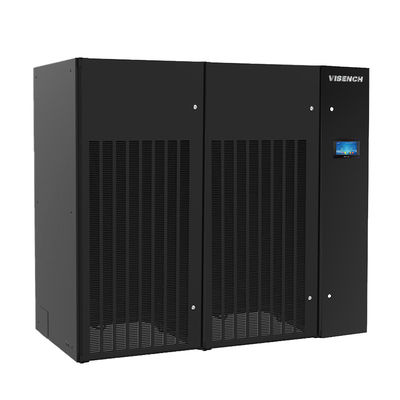

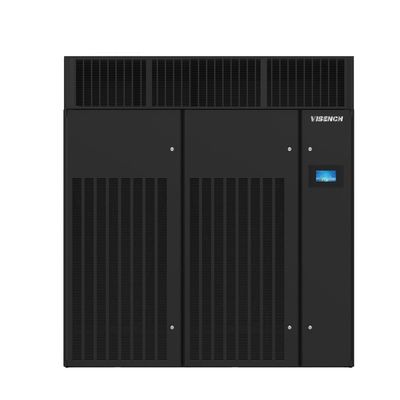

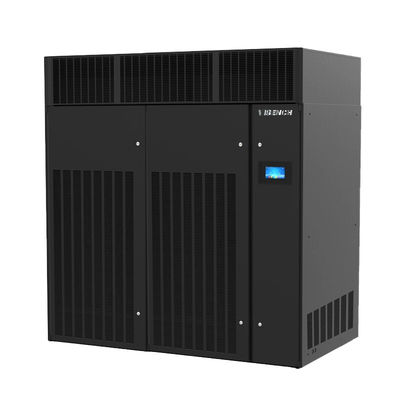

40KW 40KVA Dual System Air Cooling Industrial Precision Air Conditioner for Data Center
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Price | $10,971.00 - $21,731.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Industrial | Type | Other |
|---|---|---|---|
| Operating Voltage | 380VAC | Mounting | Floor Standing |
| Warranty | 1 Year | Dimension(L*W*H) | 1280*995*1950 |
| Key Selling Points | High Safety Level | Airflow | 11500m³/h |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Pressure Vessel, Motor, Gearbox |
| Weight (KG) | 150 KG | Air Conditioner Type | Constant Temperature And Humidity Type |
| Indoor Unit Model | CMA2040/50/60/70/80/90/100 | Outdoor Unit Model | 2*CMT025SP |
| Power Specifications | 380VAC/50HZ | Number Of Presses | 2 |
| Compressor Type | Scroll Compressor | Indoor Fan Form | ECCentrifugal Fan |
| Outdoor Fan Form | Axial Fan | Dimensions(mm)(W*D*H | 1280*995*1950 |
| Weight(kg) | 450 | Condition | New |
Product Description
Product Description
Room-level precision air conditioning technical parameters and configuration table (dual system) | ||||||||
Air conditioner type | Constant temperature and humidity type | |||||||
Indoor unit model | CMA2040 | CMA2050 | CMA2060 | |||||
Outdoor unit model | 2*CMT025SP | 2*CMT033SP | 2*CMT040SP | |||||
Energy efficiency ratio | 3.05 | 3.03 | 3.04 | |||||
Power Specifications | 380VAC/50HZ | |||||||
Maximum current | 44A | 52A | 57A | |||||
Recommended input space | 63A/4P | 63A/4P | 80A/4P | |||||
Cooling capacity (kW） | 40.4 | 50.6 | 60.4 | |||||
Sensible cooling capacity (kW） | 37 | 46.3 | 55.1 | |||||
sensible heat ratio | 0.92 | 0.92 | 0.91 | |||||
Air volume (m³/h） | 11500 | 13500 | 15000 | |||||
Return air volume (m³/h） | 11500 | 13500 | 15000 | |||||
heat exchange capacity(kW) | 25 | 33 | 40 | |||||
PTC Electric heating power (kW） | 8 | |||||||
Electrode humidification capacity (kg/h） | 8 | |||||||
compressor | Number of presses | 2 | ||||||
Fixed frequency/frequency conversion | fixed frequency | |||||||
Compressor type | scroll compressor | |||||||
indoor fan | Air supply method | U: Top air supply (standard hood);D：Downward air supply | ||||||
Number of fans | 1 | |||||||
Fan form | EC Centrifugal fan | |||||||
outdoor fan | Number of fans | 4 | 6 | 6 | ||||
Fan form | Axial Fan | |||||||
Evaporator form | Come forward to send air:Vtype; downward air supply:Atype | |||||||
Expansion valve | type | Thermal Expansion Valve/Electronic Expansion Valve | ||||||
Filter | filter level | Medium and high efficiency:G4class | ||||||
refrigerant | type | R410A | ||||||
Indoor unit factory pre-charge volume (kg） | No pre-charge at the factory | |||||||
Outdoor unit factory pre-charge (kg） | No pre-charge at the factory | |||||||
Noise value(dB) | Indoor unit | 64.3 | 65 | 65.4 | ||||
The outdoor unit | 63.5 | 64 | 65.5 | |||||
Dimensions(mm)(W*D*H) | Upward air supply indoor unit(excluding hood, hood height420） | 1280*995*1950 | 1430*995*1950 | 1430*995*1950 | ||||
Downward air supply indoor unit | 1280*995*1950 | 1430*995*1950 | 1430*995*1950 | |||||
The outdoor unit | 2*(1200*400*985) | 2*(1845*400*985) | 2*(1845*400*985) | |||||
weight(kg) | Indoor unit | 450 | 520 | 540 | ||||
The outdoor unit | 88*2 | 115*2 | 128*2 | |||||
