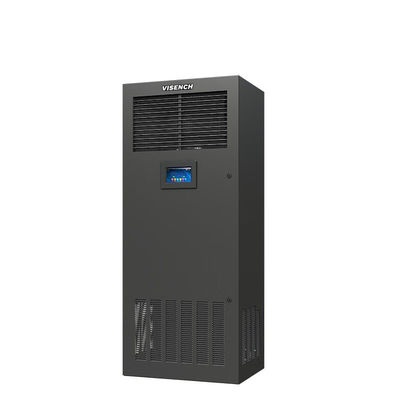

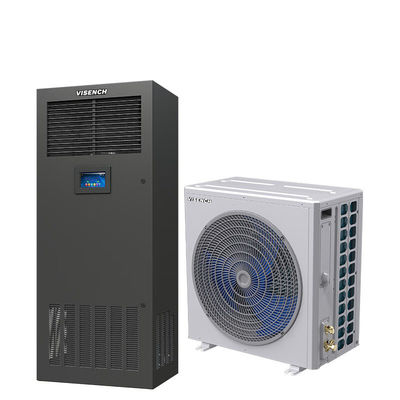

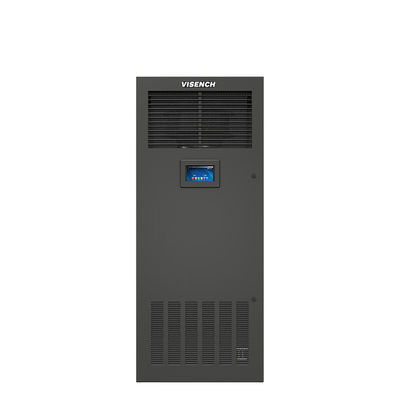

8KW Constant Temperature and Humidity Floor Standing Air Conditioner for Small Computer Room
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | visench |
| Price | $2,757.42 - $6,622.84/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Industries | Marine | Type | Industrial Air Conditioner |
|---|---|---|---|
| Operating Voltage | 380vac | Mounting | Floor Standing |
| Warranty | 1 Year | Dimension(L*W*H) | 500*500*1740 |
| Key Selling Points | High Safety Level | Airflow | 3000m³/h |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Pressure Vessel, Motor, Gearbox |
| Weight (KG) | 150 KG | Category | Constant Temperature And Humidity Type |
| Energy Efficiency Ratio | 3.0 | Power Specifications | 380VAC/50HZ |
| Indoor Unit Maximum Current | 11.5A/15.5A/7A/12A | Outdoor Unit Maximum Current | 1.1/1.2 |
| Recommended Input Circuit Breaker | 25A/4P//16/4P | Number Of Presses | 1 |
| Air Supply Method | Come Forward To Blow The Air | Evaporator Form | Large Area"/"type Evaporator |
| Weight(kg) | 130 | Condition | New |
Product Description
Product Description
Specification
Technical parameters and configuration table of precision air conditioners for small computer rooms | ||||||||||
category | Constant temperature and humidity type | Cooling only | ||||||||
Indoor unit model | CSA1008F3Z3A | CSA1013F3Z3A | CSA1008F1Z3A | CSA1013F1Z3A | ||||||
Outdoor unit model | CST008SP1A | CST013SP1A | CST008SP1A | CST013SP1A | ||||||
Energy efficiency ratio | 3.0 | 3.0 | 3.0 | 3.0 | ||||||
Power Specifications | 380VAC/50HZ | |||||||||
Indoor unit maximum current | 11.5A | 15.5A | 7A | 12A | ||||||
Outdoor unit maximum current | 1.1A | 2.2A | 1.1A | 2.2A | ||||||
Refrigeration capacity (kW) | 7.5 | 12.5 | 7.5 | 12.5 | ||||||
Sensible cooling capacity (kW) | 6.9 | 11.5 | 6.9 | 11.5 | ||||||
sensible heat ratio | 0.92 | |||||||||
Air supply volume (m3/h) | 2200 | 3000 | 2200 | 3000 | ||||||
Return air volume (m3/h) | 2200 | 3000 | 2200 | 3000 | ||||||
Heat exchange capacity(kw) | 11 | 18 | 11 | 18 | ||||||
PTC Electric heating power (kW) | 3 | 3 | _ | _ | ||||||
Electrode humidification amount (kg/h) | 3 | 3 | _ | _ | ||||||
compressor | Number of presses | 1 | ||||||||
Fixed frequency/frequency conversion | Fixed frequency | |||||||||
Compressor type | Highly Rotary Compressor | |||||||||
indoor fan | Air supply method | Come forward to blow the air | ||||||||
Number of fans | 1 | |||||||||
Fan form | EC centrifugal fan | |||||||||
outdoor fan | Number of fans | 1 | 2 | 1 | 2 | |||||
Fan form | Axial Fan | |||||||||
Evaporator form | large area"/"type evaporator | |||||||||
Expansion valve | type | Thermal expansion valve/electronic expansion valve | ||||||||
Filter | filter level | Medium and high efficiency:G4class | ||||||||
refrigerant | type | R410A | ||||||||
Indoor unit factory precharge (kg) | 1 | 1.5 | 1 | 1.5 | ||||||
Factory precharge of outdoor unit (kg) | 1 | 1.5 | 1 | 1.5 | ||||||
Noise value(dB) | Indoor unit | 56.5 | 60 | 56.5 | 60 | |||||
The outdoor unit | 57 | 61 | 57 | 61 | ||||||
Dimensions(mm) | Indoor unit(W*d*h) | 500*500*1740 | 700*500*1740 | 500*500*1740 | 700*500*1740 | |||||
Outdoor unit(W*d*h) | 850*400*730 | 1200*400*730 | 850*400*730 | 1200*400*730 | ||||||
weight(kg) | Indoor unit | 130 | 170 | 130 | 170 | |||||
The outdoor unit | 59.5 | 61 | 59.5 | 61 | ||||||
