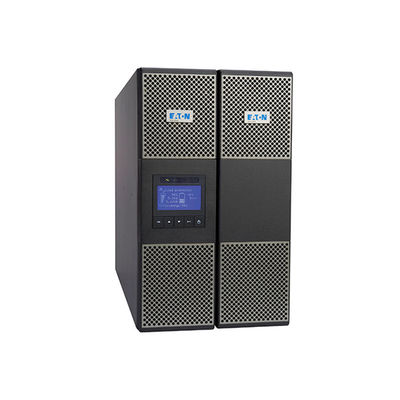

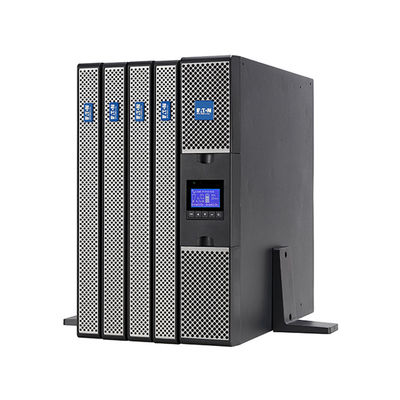

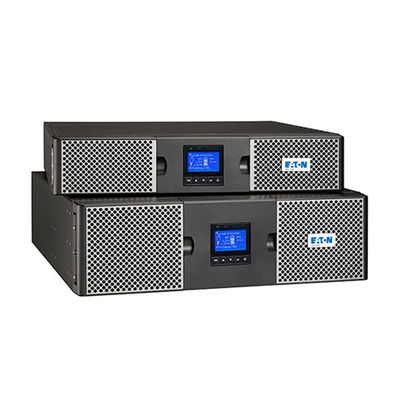

Telecommunications Eaton 9PX Lithium Online Single Phase UPS 1KW 1.5KW 2.2KW 3KW
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Eaton |
| Model Number | Eaton 9PX Lithium |
| Price | $1,095.00 - $2,579.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Phase | Single Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | Telecommunications | Electric Energy | 3 Wh |
| Product Name | Eaton 9PX Lithium UPS | Power Level | 1KVA-3KVA |
| Form Factor | Rack/Tower | Technology | Online UPS |
| Rated Frequency | 40-70 Hz | Input Voltage | 200/208/220/230/240V |
| Output Voltage | 200/208/220/230/240V | Efficiency | 98% |
| Short Circuit Current | 90A/120A | Operating Temeprature | 0 ~ 40°C |
Product Description
Product name | Eaton 9PX Lithium UPS | ||
Power level | 1KVA-3KVA | ||
Form Factor | Rack/Tower | ||
Technology | Online UPS | ||
Rated frequency | 40-70 Hz | ||
Input Voltage | 200/208/220/230/240V | ||
Output Voltage | 200/208/220/230/240V | ||
Efficiency | 98% | ||
Short circuit current | 90A/120A | ||
Overload capacity | 102-110% : 120s, 110-125%: 60s, 125-150%: 10s, >150%: 900ms | ||
Battery management | ABM® and temperature compensated charging method (user selectable), automatic battery test, deep discharge protection | ||
Communication Ports | 1 USB port + 1 RS232 serial port and relay contacts | ||
Communication Slot | 1 slot for Network-MS board (standard in Netpack version), ModBus-MS or Relay-MS board. | ||
Operating temeprature | 0 ~ 40°C | ||
Noise level | <50db | ||
Safety | IEC/EN 62040-1, UL 1778（1:1） | ||
EMC, Performance | IEC/EN 62040 -2, FCC Class A（1:1），IEC/EN 62040-3 | ||
Approvals | CE，CB（TUV），UL（1:1） | ||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
