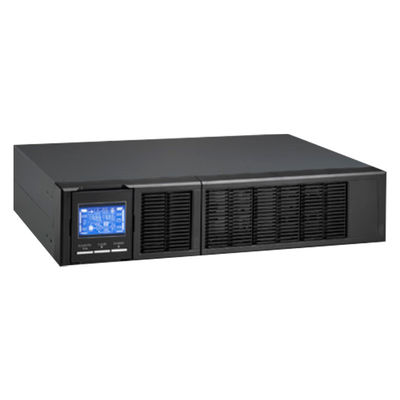

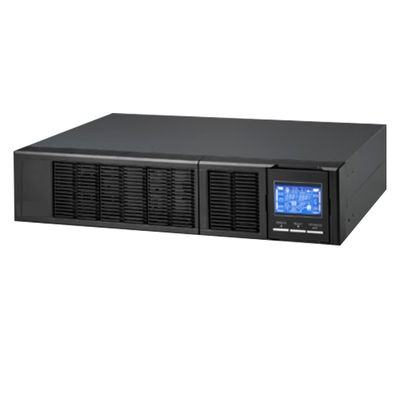

1KVA 10KVA Pure Sine Wave Rack Mount Online UPS with Adjustable Charging Current and SNMP Backup

Place of Origin	Guangdong, China
Brand Name	Visench
Model Number	Winner Pro Rack
Price	$115.00 - $348.00/pieces

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Warranty	1year	Phase	Single Phase
Protection	Short Circuit	Type	On-line
Application	Security / Monitoring / Alarm	Electric Energy	1000 Wh
Product Name	Winner Pro Rack	Rated Capacity	1KVA -10KVA
Power Factor	0.99	Input Voltage	208/220/230/240VAC
Output Voltage	208/220/230/240VAC	Frequency	40Hz To 70Hz
Waveform	Pure Sine Wave	PHASE	Single Phase With Groun
Battery Type	12V/9AH	Inverter To Bypass	4 Ms (Typical)

Leave a Message

Product Description

Product name	Winner Pro Rack
Rated Capacity	1KVA -10KVA
Power Factor	0.99
Input Voltage	208/220/230/240VAC
Frequency	40Hz-70Hz
Output Voltage	208/220/230/240VAC
Waveform	Pure Sine wave
Battery Type	12V/9AH
PHASE	Single phase with groun
Harmonic Distortion	≤ 3 % THD (Linear Load),Harmonic Distortion
Current Crest Ratio	3:01
Voltage Regulatior	土1%
Frequency Range	47~ 53 Hz or 57~ 63 Hz
Inverter to Bypass	4 ms (Typical)
Typical Recharge Time	4 hours recover to 90% capacity
Size(mm)	310x438x88/410x438x88/630x438x88(mm)
Weight(Kgs)	12/19//14.2/15

MODEL	Winner Pro 1KR(L)	Winner Pro 2KR(L)	Winner Pro 3KR(L)	Winner Pro 6KR(L)	Winner Pro 10KR(L)
PHASE	Single phase with groud
CAPACITI	1000VA/800W	2000VA/1600W	3000VA/2400W	6000VA/4800W	10000VA/8000W
INPUT
Nominal Voltage	110/115/120/127VAC or 208/220/230/240VAC					208/220/230/240VAC
Input Voltage Range	55-145 VAC or110-300 VAC at 50%load 85-140 VAC or 160-280 VAC at 100%load					110-300 VAC±3%at 50%Load 176-300 VAC±3%at 100%Load
Frequency Range	40Hz ~70 Hz					46Hz~54 Hz or 56Hz~64 Hz
Power Factor	≥0.99 @Nominal Voltage (100%load)
OUTPUT
Output Voltage	110/115/120/127VAC or 208/220/230/240VAC					208/220/230/240VAC
Voltage Regulation	±1%					±1%
Frequency Range (Synchronized Range)	47~53 Hz or 57～63 Hz					46Hz~54 Hz or 56Hz~64 Hz
Frequency Range (Batt.Mode)	50 Hz±0.25 Hzor60Hz±0.3 Hz					50 Hz±0.1 Hzor 60 Hz±0.1 Hz
Current Crest Ratio	3:1
Harmonic Distortion	≤3%THD (Linear Load) ≤6%THD (Non-linear Load)					≤3%THD (Linear Load) ≤5%THD (Non-linear Load)
Transfer Time AC Mode to Battery Mode	Zero					0 ms
Transfer Time Inverter to Bypass	4 ms (Typical)					0 ms
Waveform(Batt.Mode)	Pure Sinewave
EFFICIENCY
AC Mode	88%	89%	90%	92%	93%
Battery Mode	83%	87%	88%	90%	91%
INDICATORS
LCD Pane	UPS status,Load level,Battery level,Input/Output voltage,Discharge timer,and Fault conditions
ALARM
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continuously sounding
ENVIRONMENT
Humidity	20-90 %RH @0-40℃(non-condensing)					0-95 %RH @0-40°℃(non-condensing)
Noise Level	Less than 50dB @1 Meter					Less than 55dB @1 Meter	Less than 58dB @1 Meter
MANAGEMENT
Smart RS-232/USB	Supports Windows Family,Linux and MAC
Optional SNMP	Power management from SNMP manager and web browser
