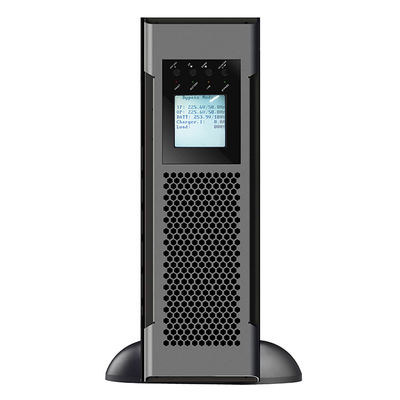

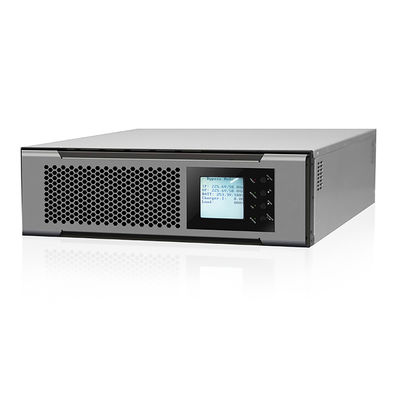

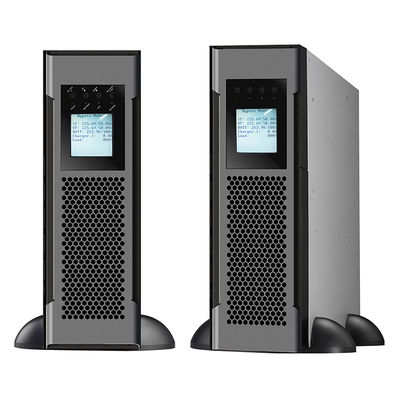

10KVA 6KVA 3KVA Pure Sinewave 360v/380v/400v/415v Online UPS For Telecommiunications

Place of Origin	Guangdong, China
Brand Name	Visench
Model Number	Visench Arena 3U
Price	$857.00 - $1,628.00/pieces

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Warranty	1year	Phase	Single Phase
Protection	Short Circuit	Type	On-line
Application	Telecommunications	Electric Energy	3000 Wh
Product Name	Arena 3U Online UPS	PHASE	3 Phase In/3 Phase Out
Input Voltage	3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)	Power Factor	≥0.99 @100%load
Output Voltage	3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)	Current Crest Ratio	3:1 (max.)
Waveform	Pure Sinewave	Operating Humidity	0-95%RH @0-40°℃(non-condensing)
Dimension,DxWxH(mm)	678x418x129 [3U]	Net Weight (kgs)	20.5

Leave a Message

Product Description

Product name	Arena 3U Online UPS
PHASE	3 phase in/3 phase out
Input Voltage	3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)
Power Factor	≥0.99 @100%load
Output Voltage	3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)
Current Crest Ratio	3:1 (max.)
Waveform	Pure Sinewave
Operating Humidity	0-95%RH @0-40°℃(non-condensing)
Dimension,DxWxH(mm)	678x418x129 [3U]
Net Weight (kgs)	20.5/17.6/21
Frequency Range	46~54Hz or 56~64Hz
Harmonic Distortion	≤2%THD (Linear Load);≤3%THD (Non-linear Load)
Inverter to Bypass	zero
CAPACITY	3k-10k
Voltage Range	190-520 VAC(3-phase)@50%load 305-478 VAC(3-phase)@100%load
THDi	<4%@full linear load
Operating Humidity	0-95%RH @0-40°℃(non-condensing)

MODEL

Arena 3/3-10K

Arena 3/1-10K

Arena 1/1-10K

Arena 2/2-6K LV

Arena 3/3-10K LV

PHASE

3 phase in/3 phase out

3 phase in /1 phase out

1 phase in /1 phase out

2 phase in /2 phase out

3 phase in /3 phase out

CAPACITY

10000VA/10000 W

6000 VA/6000 W

10000 VA/8000 W

PARALLEL CAPABILITY

INPUT

Nominal Voltage

3x360VAC/380VAC/400VAC/415VAC(3Ph+N+PE)

208VAC/220VAC/230VAC 1240VAC(1Ph+N+PE)

100/200,110/220,120/208，120/240,127/220 VAC (2P+N+PE）

3x173VAC/190VAC/200VAC/208/220VAC (3Ph+N+PE)

Voltage Range

190-520 VAC(3-phase)@50%load 305-478 VAC(3phase)@100%load

110-300 VAC @50%load 76-276 VAC @100%load

88-155 VAC(L-N) 152-269 VAC (L-L)

88-155 VAC (L-N) 152-269 VAC(L-L)

Frequency Range

40 Hz~70 Hz

Power Factor

≥0.99 @100%load

THDi

<4%@full linear load

OUTPUT

Output Voltage

360VAC/380VAC/400VAC/ 415VAC(3Ph+N

208*/220/230/240VAC (L+N)

100/200,110/220,120/208 120/240,127/220VAC (2Ph+N)

173VAC/190VAC/200VAC/208VAC/220VAC(3Ph+N

Frequency Range (Synchronized Range)

46~54Hz or 56~64Hz

Frequency Range (Batt.Mode)

50Hz±0.1 Hz or 60 Hz±0.1 Hz

Current Crest Ratio

3:1 (max.)

Harmonic Distortion

≤2%THD (Linear Load);≤3%THD (Non-linear Load)

Transfer Time

AC Mode to Batt.Mode

zero

Inverter to Bypass

zero

Waveform(Batt.Mode)

Pure Sinewave

EFFICIENCY

AC Mode

94%

93.5%

91%

92%

ECO Mode

97%

Battery Mode

At Full Load

93%

92.5%

92%

91%

92%

Peak

93.5%

93%

92.5%

91.5%

92%

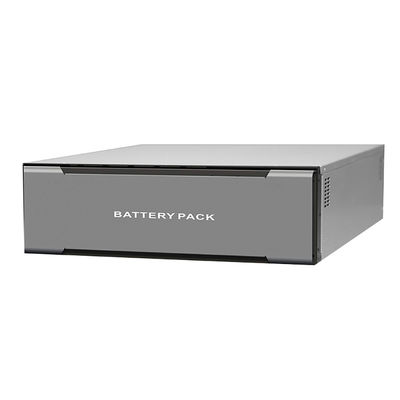

BATTERY CHARGER

Battery Voltage

±12V/9 Ah

Battery Numbers

16~20 pcs (adjustable)x 2

16~20pcs

(adjustable)x 2

16~20 pcs (adjustable)x 2

8~10pcs (adjustable)x 2

Nominal Voltage

+1-192V (12Vx 32 pcs)

+1-192V (12Vx32 pcs)

+1-192V (12Vx 32 pcs)

+1-96V (12Vx 16 pcs

+/-96V (12Vx 16 pcs

Maximum Voltage

+1-240V (12Vx40 pcs)

+1-120V (12Vx20pcs)

Minimum Voltage

+/-192V(12Vx 32 pcs)

+1-192V (12Vx 32 pcs)

+1-192V (12V x 32 pcs)

+1-96V (12Vx 16pcs)

Charging Voltage

±218V

±109V

Typical Recharging Time

9 hours recover to 90%capacity

Charging Current

±4A

INDICATORS

1CD/LED Display

UPS status,Load level,Battery level,Input/Output voltage,Discharge timer,and Fault conditions

PHYSICAL

Dimension,DxWxH(mm)

678x418x129 [3U]

Net Weight (kgs)

20.5

17.6

ENVIRONMENT

Operating Humidity

0-95%RH @0-40°℃(non-condensing)

Noise Level

Less than 55dB @1 Meter

Less than 58dB @1 Meter

MANAGEMENT

Smart RS-232/USB

Supports Windows@Family,Linux and MAC

COMPANY PROFILE:

Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.

We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.

As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.

Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
