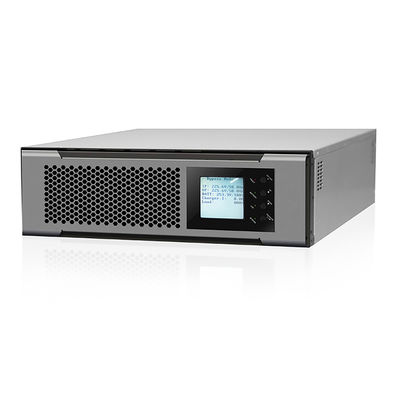

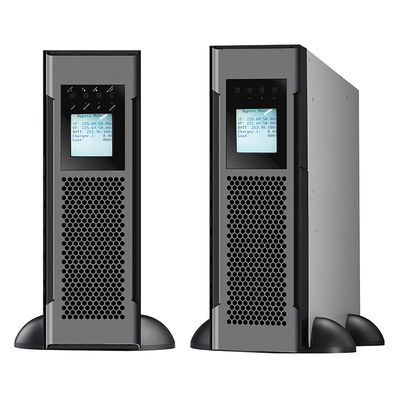

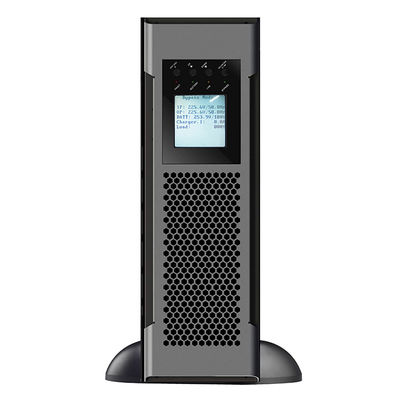

Visench 10KVA 10KW 360v/380v/400v/415v Current Crest Ratio 3 1 Pure Sinewave Online UPS

Place of Origin	Guangdong, China
Brand Name	Visench
Model Number	Visench Arena 3U
Price	$857.00 - $1,628.00/pieces

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Warranty	1year	Phase	Single Phase
Protection	Short Circuit	Type	On-line
Application	COMPUTER	Electric Energy	3000 Wh
Product Name	Arena 3U Online UPS	PHASE	3 Phase In/3 Phase Out
Input Voltage	3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)	Power Factor	≥0.99 @100%load
Output Voltage	3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)	Current Crest Ratio	3:1 (max.)
Waveform	Pure Sinewave	Operating Humidity	0-95%RH @0-40°℃(non-condensing)
Dimension,DxWxH(mm)	678x418x129 [3U]	Net Weight (kgs)	20.5

Leave a Message

Product Description

Product name	Arena 3U Online UPS
PHASE	3 phase in/3 phase out
Input Voltage	3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)
Power Factor	≥0.99 @100%load
Output Voltage	3x360VAC/380VAC/ 400VAC/415VAC (3Ph+N+PE)
Current Crest Ratio	3:1 (max.)
Waveform	Pure Sinewave
Operating Humidity	0-95%RH @0-40°℃(non-condensing)
Dimension,DxWxH(mm)	678x418x129 [3U]
Net Weight (kgs)	20.5/17.6/21
Frequency Range	46~54Hz or 56~64Hz
Harmonic Distortion	≤2%THD (Linear Load);≤3%THD (Non-linear Load)
Inverter to Bypass	zero
CAPACITY	3k-10k
Voltage Range	190-520 VAC(3-phase)@50%load 305-478 VAC(3-phase)@100%load
THDi	<4%@full linear load
Operating Humidity	0-95%RH @0-40°℃(non-condensing)

MODEL

Arena 3/3-10K

Arena 3/1-10K

Arena 1/1-10K

Arena 2/2-6K LV

Arena 3/3-10K LV

PHASE

3 phase in/3 phase out

3 phase in /1 phase out

1 phase in /1 phase out

2 phase in /2 phase out

3 phase in /3 phase out

CAPACITY

10000VA/10000 W

6000 VA/6000 W

10000 VA/8000 W

PARALLEL CAPABILITY

INPUT

Nominal Voltage

3x360VAC/380VAC/400VAC/415VAC(3Ph+N+PE)

208VAC/220VAC/230VAC 1240VAC(1Ph+N+PE)

100/200,110/220,120/208，120/240,127/220 VAC (2P+N+PE）

3x173VAC/190VAC/200VAC/208/220VAC (3Ph+N+PE)

Voltage Range

190-520 VAC(3-phase)@50%load 305-478 VAC(3phase)@100%load

110-300 VAC @50%load 76-276 VAC @100%load

88-155 VAC(L-N) 152-269 VAC (L-L)

88-155 VAC (L-N) 152-269 VAC(L-L)

Frequency Range

40 Hz~70 Hz

Power Factor

≥0.99 @100%load

THDi

<4%@full linear load

OUTPUT

Output Voltage

360VAC/380VAC/400VAC/ 415VAC(3Ph+N

208*/220/230/240VAC (L+N)

100/200,110/220,120/208 120/240,127/220VAC (2Ph+N)

173VAC/190VAC/200VAC/208VAC/220VAC(3Ph+N

Frequency Range (Synchronized Range)

46~54Hz or 56~64Hz

Frequency Range (Batt.Mode)

50Hz±0.1 Hz or 60 Hz±0.1 Hz

Current Crest Ratio

3:1 (max.)

Harmonic Distortion

≤2%THD (Linear Load);≤3%THD (Non-linear Load)

Transfer Time

AC Mode to Batt.Mode

zero

Inverter to Bypass

zero

Waveform(Batt.Mode)

Pure Sinewave

EFFICIENCY

AC Mode

94%

93.5%

91%

92%

ECO Mode

97%

Battery Mode

At Full Load

93%

92.5%

92%

91%

92%

Peak

93.5%

93%

92.5%

91.5%

92%

BATTERY CHARGER

Battery Voltage

±12V/9 Ah

Battery Numbers

16~20 pcs (adjustable)x 2

16~20pcs

(adjustable)x 2

16~20 pcs (adjustable)x 2

8~10pcs (adjustable)x 2

Nominal Voltage

+1-192V (12Vx 32 pcs)

+1-192V (12Vx32 pcs)

+1-192V (12Vx 32 pcs)

+1-96V (12Vx 16 pcs

+/-96V (12Vx 16 pcs

Maximum Voltage

+1-240V (12Vx40 pcs)

+1-120V (12Vx20pcs)

Minimum Voltage

+/-192V(12Vx 32 pcs)

+1-192V (12Vx 32 pcs)

+1-192V (12V x 32 pcs)

+1-96V (12Vx 16pcs)

Charging Voltage

±218V

±109V

Typical Recharging Time

9 hours recover to 90%capacity

Charging Current

±4A

INDICATORS

1CD/LED Display

UPS status,Load level,Battery level,Input/Output voltage,Discharge timer,and Fault conditions

PHYSICAL

Dimension,DxWxH(mm)

678x418x129 [3U]

Net Weight (kgs)

20.5

17.6

ENVIRONMENT

Operating Humidity

0-95%RH @0-40°℃(non-condensing)

Noise Level

Less than 55dB @1 Meter

Less than 58dB @1 Meter

MANAGEMENT

Smart RS-232/USB

Supports Windows@Family,Linux and MAC
