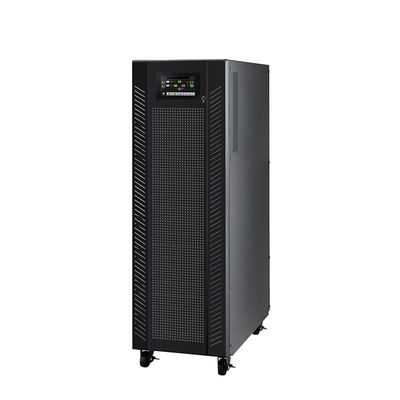

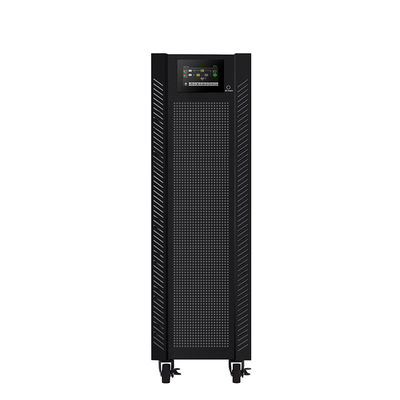

10KVA 10000W Pure Sine Wave Power Supply Online UPS For Computer Visench Galleon ll

Place of Origin	Guangdong, China
Brand Name	Visench
Model Number	Visench Galleon II
Price	$905.00 - $1,773.00/pieces

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Warranty	1year	Phase	Three Phase
Protection	Short Circuit	Type	On-line
Application	Networking	Electric Energy	10000 Wh
Product Name	Galleon Ll 3-phase In/3-phase Out	Rated Capacity	10KVA-40KVA
Power Factor	0.99	Input Voltage	3 X 360/380/400/415 VAC
Output Voltage	3 X 360/380/400/415 VAC	Frequency	40~70 HZ
Waveform	Pure Sine Wave	PHASE	3Ph In/ 3Ph Out
Inverter To Bypass	Zero	Size(mm)	630 X 250 X 826

Leave a Message

Product Description

MODEL	10K(L）	15K（L)	20K(L)	30KL	40KL
PHASE	3-phase in/3-phase out
CAPACITY	10KVA/10KW	15KVA/15KW	20KVA/20KW	30KVA/30KW	40KV /40KW
INPUT
Hominsl Voltage	3x208/220 VAC(Ph-Ph) 3x120/127 VAC (Ph-N)
Voltage Range	138~270 VAC(3-phase)@50%load;173~253 VAC(3-phase)@100%load 80~156 VAC(Ph-N) 50%load;100~148 VAC(Ph-N)@100%load
Frequency Range	46~54 Hz or 56~64Hz
Power Factor	≥0.99 @100%Load
OUTPUT
Quput Voltage	3x208/220 VAC(Ph-Ph) 3x120/127 VAC(Ph-N)
AC Voltage Regulation (Batt.Mode）	±1%
Frequency Range (Synchrenized Range)	46~54Hz or 56~64Hz
Frequency Range (Batt.Mode)	50Hz±0.1Hz or 60 Hz±0.1 Hz
Current Crest Rati	3:1(max）
Harmonic Distortion	≤2%THD(Linear Load); ≤4%THD (Non-linear Load PF≥0.8)
Transfer Time AC Mode to Batt.Mode	Zero
Transfer Time Inverter to Bypass	Zero
Waveform (Balt.Mode)	Pure Sine wave
Overload AC Mode	100-110%for 1 hr,110-130%for 1 min,>130%for 1 second
Overload Battery Mode	100-110%for 30 seconds,110-130%for 10 seconds,>130%far 1 second
EFFICIENCY
AC Mode	93%
ECO Mode	97%
Baltery Mode	92.5%
BATTERY
Standanm Mode
Battery Type	12 V/9 Ah	12 V/9 Ah	12 V/9 Ah	12 V/7 Ah	12 V/9 Ah
Numbers	(10+10)pcs x 1 string Optiona for max.2 strings	(10+10)pcs x 2 strings Optional for max.3 strings	(10+10)pcs x 3 strings	NA
Typical Recharge Time	9 hours recover to 90%capacity
Charging Current (max.)	1A~12A(Adiustable Max.12A	4ABN12A.(Aditable) Optional parallel up to Max.20A
Charging Voltage	+/-C33136.5 VDC±10%
Long-run Mode
Batery Type	Depending on the capacity of extemal batteries
Numbers	18~20 pes (Adjustable)
Charging Current (max)	1A~12A(Adjustable) Max.12A	4A/8A/12A(Adjustable) Optional parallel up to Max.20A			8AN/18A/24A(Adjustable)
Charging Woltage	+/-13.65V*N (N =8~10)
NDICATORS
LCD Display	UPS status,Load level,Battery level,Input/Output valtage.Discharge timer,and Fault conditions
PHYSICAL
Standard Model Dimension,DxWsH (mm)	867x250x826	865x300x 1020			NA
Standard Model Net Weight (kgs)	95	181	231		NA
Long-nun Mode Dimension,DxWxH (mm)	887x250x82	865x300x1020			790x420x1200
Long-nun Mode Net Weight (kgs)	45	80	81	150	160
ENVIRONMENT
Operation Temperture	0-40°C
Operation Humidity	<95%and non-condersing
Noise Level	Less than 60dB @ Meter	Less than 70dB @1 Meter				Less than 75dB@ 1 Meter
MANAGEMENT
Smart RS-232/USB	Supports Windows2000/2003/XPNista/2008,Windows*7/8/10,Linux and MAC
Optional SNMP	Power management from SNMP manager and web browser

Product name	Galleon ll 3-phase in/3-phase out
Rated Capacity	10KVA-40KVA
Power Factor	0.99
Input Voltage	3 x 360/380/400/415 VAC
Frequency	40~70 HZ
Output Voltage	3 x 360/380/400/415 VAC
Waveform	Pure Sine wave
Battery Type	12V/9AH
PHASE	3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph out
Harmonic Distortion	≤2%THD (Linear Load) ;≤ 5 % THD (Non-inear Load)
Current Crest Ratio	3:1(max.)
Battery Mode	94.50%
Frequency Range	46~54 Hz or 56~64H2
Inverter to Bypass	Zero
Typical Recharge Time	9 hours recover to 90% capacity
Size(mm)	630 x 250 x 826
Weight(Kgs)	127/139/207/233

1. who are we?
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU

4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
