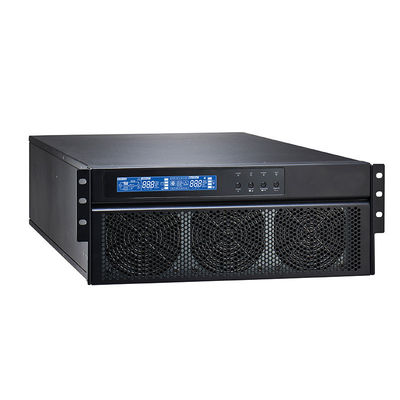

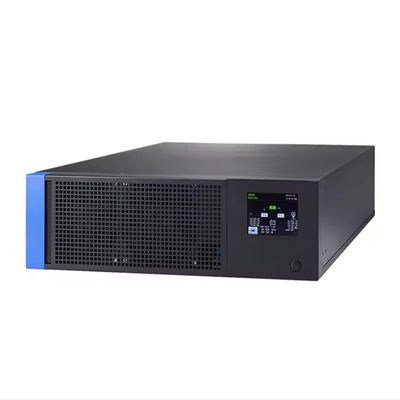

Visench Galleon II 3P3P Rack 20KL 20KVA 20KW 20000VA 20000W OEM Rackmount Systems Online UPS For Telecommunications

Place of Origin	Guangdong, China
Brand Name	Visench
Model Number	Visench Galleon II Rack
Price	$999.00 - $2,621.00/pieces

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Warranty	1year	Phase	Three Phase
Protection	Short Circuit	Type	On-line
Application	Telecommunications	Electric Energy	10000 Wh
Product Name	Galleon II 3P3P Rack	Rated Capacity	10KVA-60KVA
Power Factor	0.99	Input Voltage	208/220/230/240 VAC(Ph-N)
Output Voltage	3 X 360/380/4001415 VAC(3Ph+N)or 20812201230/240 VAC (Ph-N)	Waveform	Pure Sine Wave
Battery Type	Depending On The Applications	Inverter To Bypass	Zero
Size(mm)	680 X 438 X 133	Weight(Kgs)	27/30/32/34/45

Leave a Message

Product Description

MODEL

10KL

15KL

20KL

30KL

40KL

60KL

PHASE

3-phase in/3-phase out

CAPACITY

10KVA/10KW

15KVA/15KW

20KVA/20KW

30KVA/30KW

40KVA/40KW

60KVA/6DKW

PARALLEL CAPABILITY

INPUT

Nominal Voltage

3×400 VAC (3Ph+N)or 208*220/230/240 VAC (Ph-N)

Voltage Range

190-520 VAC(3-phase)@50%load;305-478 VAC(3-phase)@100%load

Frequency

48~54 Hz or 56~84Hz

Power Factor

≥0.90 @100%load

OUTPUT

Output Voltage

3x380Y3801400/415 VAC(3Ph+N)or 208*220/230/240 VAC (Ph-N)

3x380Y380/400/415 VAC(3Ph+N)

AC Voltage Regulation (Batt.Mode)

±1%

Frequency Range (Synchranized Range)

46~54Hz or 56~64Hz

Frequency Range (Batt.Mode)

50 Hz±0.1 Hzor60 Hz±0.1 Hz

Current Crest Ratio

3:1 (max.)

Harmonic Distortion

≤2%THD(Linear Load):≤5%THD (Non-linear Load

Transfer Time

AC mode to Battery mode

Zero

Invener to Bypass

Zero

Waveform (Batt.Mode)

Pure Sinewave

Overload

AC Mode

100-110%for 60 min,110-125%for 10 min,125%~150%for 1 min;>150%immediately

Battery Mode

100-110%for 60 min,110-125%for 10 min,125%~150%for 1 min;>150%immediately

EFFICIENCY

AC Mode

95.5%

ECO Mode

98.5%

Battery Mode

94.5%

BATTERY

Battery Type

Depending on the applications

Battery Numbers

20 pcs

32~40 pcs(Adjustable)

Charging Current (max.)

1A~12A(Adjustable)

1A-10A (Adjustable)

1A~18A (Adjustable)

Charging Voltage

+1-13.65 VDC x N (N=10)

+113.85 VDCxN (N=16~20)

PHYSICAL

Dimension,DxWxH(mm)

880x438x133(3U)

797x438x176(4U）

Net Weight (Kgs)

ENVIRONMENT

Operating Temperature

0-40℃

Operating Humidity

<95% and non-condensing

Noise Level

Less than 62dBA @1Meter

Less than 65dB @1 Meter

Less than 70dB @1 Meter

MANAGEMENT

Smart RS-232/USB

Supports WindowsO family.Linux and MAC

Optional SNMP

Power management from SNMP manager and web browser

Product name	Galleon II 3P3P Rack
Rated Capacity	10KVA-60KVA
Power Factor	0.99
Input Voltage	208*122012301240 VAC(Ph-N)
Frequency	46~54 Hz or 56~64Hz
Output Voltage	3 x 360/380/4001415 VAC(3Ph+N)or 20812201230/240 VAC (Ph-N)
Waveform	Pure Sine wave
Battery Type	Depending on the applications
PHASE	3-phase in/ 3-phase out
Harmonic Distortion	≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-inear Load)
Current Crest Ratio	3:1(max.)
Battery Mode	94.50%
Frequency Range	46~54Hz or 56~64Hz
Inverter to Bypass	Zero
Operating Temperature	0-40°C
Size(mm)	680 x 438 x 133
Weight(Kgs)	27/30/32/34/45
