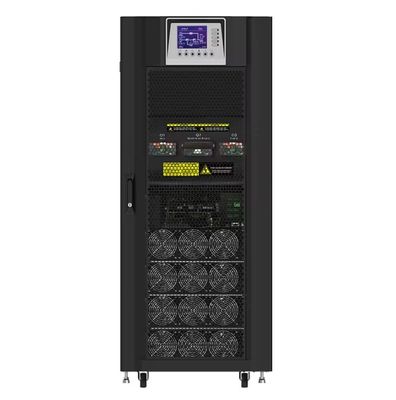

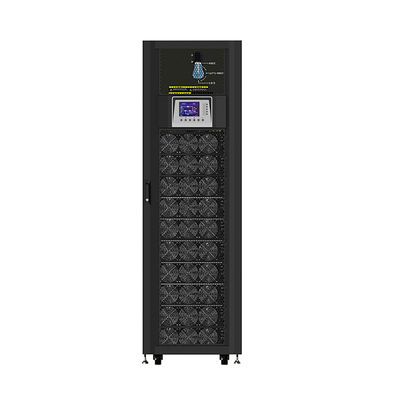

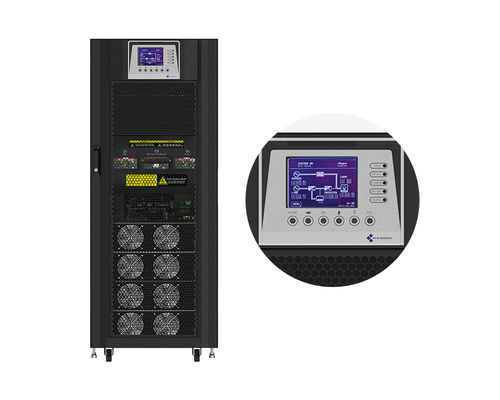

CABINET CAPACITY 90KW Visench Power UPS 30U-90HV Modular 90KVA 90000VA 90000W Online Ups

Place of Origin	Guangdong, China
Brand Name	Visench
Model Number	Visench +Power Modular
Price	$1,233.00 - $4,445.00/pieces

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Warranty	1year	Phase	Three Phase
Protection	Short Circuit	Type	On-line
Application	Computer/networking	Electric Energy	90000 Wh
Product Name	Visench +Power Modular UPS	PHASE	3-phase In/3-phase Out
CABINET CAPACTY	20KW-300KW	BATTERY TYPE	Built -in/External Battery
Nominal Voltage	3x208/220 VAC (3Ph+N)	Frequcncy Range	40Hz~70Hz
Power Factor	>0.99 At 100%load	Eiffcilency	Up To 92.5%at Over 50%load
Cabinet Dimension (Dx Wx H)mm	1100x600x1475	Net Weight (kg)	675/932/335

Leave a Message

Product Description

Product name	Visench +Power Modular UPS
PHASE	3-phase in/3-phase out
CABINET CAPACTY	20KW-300KW
BATTERY TYPE	Built -in/External Battery
Nominal Voltage	3x208/220 VAC (3Ph+N)
Frequcncy Range	40Hz~70Hz
Power Factor	>0.99 at 100%load,>0.98 at 50%load
Eiffcilency	Up to 92.5%at over 50%laad
Maximum Charging Current	8A for each power module (User-adjustable)
Input Voltage	3x208/220 VAC (3Ph+N)
Output Voltage	3x208/220 VAC (3Ph+N)
IP Protection	IP 20
Operating Temperature	0~40°℃
Temperature Compensaton	Yes
Maximum Charging Current	8A for each power module (User-adjustable)
Cabinet Dimension (Dx Wx H)mm	1100x600x1475
Net Weight (kg)	675/932/335

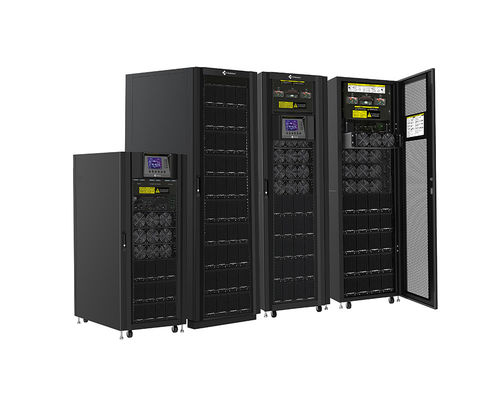

MODEL

+Power 30U-60LV

+Power 42U-80LV

+Power 30U-80LV

+Power 30U-120LV

+Power 42U-140LV

PHASE

3-phase in/3-phase out

BATTERY TYPE

Built -in Battery

External Battery

ONE POWER MODULE CAPACITY

20KVA/20KW

MAX.POWER MODULE NO.

7+1

MAX.BATTERY SET NO.**

INPUT

Nominal Voltage

3x208/220 VAC (3Ph+N)

Woltane Range

182V-253V at 90%~100%load
156V~253V at 63%-90%load
121V~253V far <63%Load

Nominal Frequency

50/60Hz(Auto sensing)

Frequcncy Range

40Hz~70Hz

Power Factor

>0.99 at 100%load,>0.98 at 50%load

Harmonic Distortion (THDi)

＜3%@100%load

OUTPUT

Nominal Voltage

3x208V/220VAC (3Ph+N)

Voltage Regulation (Steady state)

≤±1%Typical (balanced load);≤±2%Typical (imbalanced load）

Nomnal Frequtncy

50/60Hz

Frequency Range (Synchronized)

46Hz～54Hz or 56Hz~64Hz

Onedoad Cepability

hour for 110%,10 mins for 125%.:1 min for 150%,200ms for >150%

Harmonic Distortion

≤2%THD(Linear Laad);≤4%THD (Non-linear Load)

Eiffcilency

Up to 92.5%at over 50%load

BATTERY/CHARGER

Mominal Votnge

+1-120V (12V x 20 pcs)

Float Charging Valtage

2.3V/Cell

Boost Charging Voltage

2.35V/Cell

Temperature Compensaton

Yes

Maximum Charging Current

8A for each power module (User-adjustable)

PHYSICAL

Cabinet Dimension (Dx Wx H)mm

1100x600x1475

1100x600x 2010

1100x600x1475

1100 x600x1475

1100x600x2010

Net Weight (kg)

670.5

926

329

428.5

7Power Modules;504 8 Power Modules:537

ENVIRONMENT

Operating Temperature

0~40°℃

Rolatwe Humid

0~95%non-condemsing

Altitude

≤1000m for Nominal power

IP Protection

IP 20

MANAGEMENT

Smart RS-232/USB

Supports Windows Famlly,Lnux and MAC

Optional SNMP

Power management from SNMP manager and web browser

STANDARDS

Safety

UL1778,CSA C22.2 No.107.3-05

EMC

FCC Part 15,Subpart B Class A

COMPANY PROFILE:

Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.

We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.

As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.

Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.

2. What is the warranty?
We support 1 years warranty.

3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.

4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.

5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
