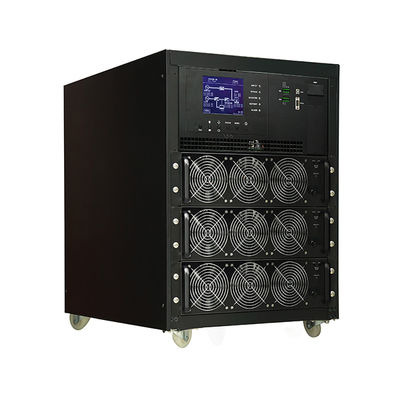

Telecommunications Visench Power E PF 0.99 External Battery 20KVA 3Phase Ups Power Supply
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Model Number | Visench +Power E |
| Price | $1,165.00 - $1,714.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Phase | Three Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | Telecommunications | Electric Energy | 20000 Wh |
| Product Name | Visench +Power E | PHASE | 3-phase In/3-phase Out |
| MAX CABINET CAPACITY* | 60KW/90KW | Battery Type | External Battery |
| Input Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) | Frequency Range | 40Hz~70Hz |
| Power Factor | >0.99 At 100%load,>0.98 At 50%load | Harmonic Distortion (THDi) | <3%@100%load |
| Output Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) | Cabinet Dimension (Dx Wx H)mm | 1000x515x763 |
Product Description
Product name | Visench +Power E |
PHASE | 3-phase in/3-phase out |
MAX CABINET CAPACITY* | 60KW/90KW |
Battery Type | External Battery |
Input Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) |
Frequency Range | 40Hz~70Hz |
Power Factor | >0.99 at 100%load,>0.98 at 50%load |
Harmonic Distortion (THDi) | <3%@100%load |
Output Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) |
Cabinet Dimension (Dx Wx H)mm | 1000x515x763 |
Net Weight (kg) | 182/183.5 |
Operating Temperature | 0～40℃ |
Relative Humidity | 0-95%non-condensing |
Altitude | <1000m for Nominal power |
iP Protection | IP 20 |
Surge protection | IEC 61643-1 |
MODEL | +Power E 15U-60 | +Power E 15U-90 | ||
PHASE | 3-phase in/3-phase out | |||
MAX CABINET CAPACITY* | 60KW | 90KW | ||
BATTERY TYPE | External Battery | |||
ONE POWER MODULE CAPACITY | 20KVA/20KW | 30KVA/30KW | ||
MAX.POWER MODULE NO | 3 | |||
INPUT | ||||
Nominal Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) | |||
Voitage Range | 305～478 VAC at 70%-100%load;208~478 VAC for | |||
Nominal Frequency | 5060z(Auto sensing) | |||
Frequency Range | 40Hz~70Hz | |||
Power Factor | >0.99 at 100%load,>0.98 at 50%load | |||
Harmonic Distortion (THDi) | <3%@100%load | |||
OUTPUT | ||||
Nominal Voltage | 3x380VAC/400VAC/415VAC (3Ph+N) | |||
Voltage Regulation (Steady state) | ≤±1%Typical (balanced load) ≤±2%Typical (unbalanced load) | |||
Nounal Frequency | 50/60Hz | |||
Frequency Range (Synchronized) | 46Hz~54Hz or 56Hz～64Hz | |||
Overload Capability | 1 hour for 110%,10 mins for 125%,1 min for 150%and 200ms for>150% | |||
Harmonic Distortion | ≤2%THD (Linear Load);≤4%THD (Non-linear Load) | |||
Efficiency | Up to 94.5% | |||
BATTERY/CHARGER | ||||
Nominal Voltage | +1-216V (12Vx36 Pcs) | |||
Maimum Voltage | +/-240V (12Vx40 Pcs) | |||
Minimum Voltage | +/-192V (12Vx 32 Pcs) | |||
Float Charging Voltage | 2.25V/Cell | |||
Boost Charging Voltage | 2.35V/Cell | |||
Temperature Compensation | Yes | |||
Mavimum Charging Current | 6A(User-adjustable) | 8A(User-adjustable) | ||
PHYSICAL | ||||
Cabinet Dimension (Dx Wx H)mm | 1000x515x763 | |||
Net Weight (kg) | 182 | 183.5 | ||
ENVIRONMENT | ||||
Operating Temperature | 0～40℃ | |||
Relative Humidity | 0-95%non-condensing | |||
Altitude | <1000m for Nominal power | |||
iP Protection | IP 20 | |||
MANAGEMENT | ||||
Smart RS-232/USB | Supports Windows Famiy Linuy and MAC | |||
Optlonal SNMF | Power management from SNMP manager and web browser | |||
STANDARDS | ||||
Safety | EC/EN 60950-1;IEC/EN 62040-1 | |||
EMC | IEC/EN 62040-2 Category C3 | |||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
