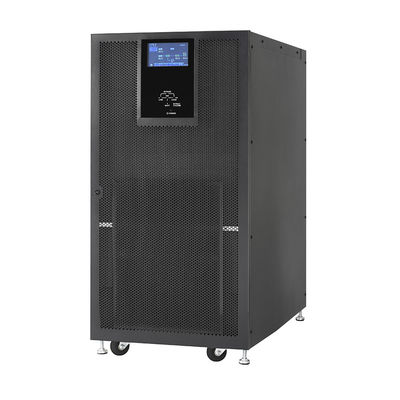

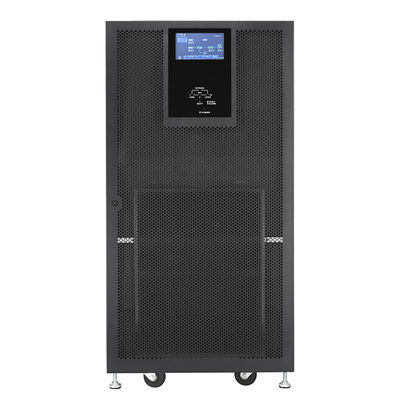

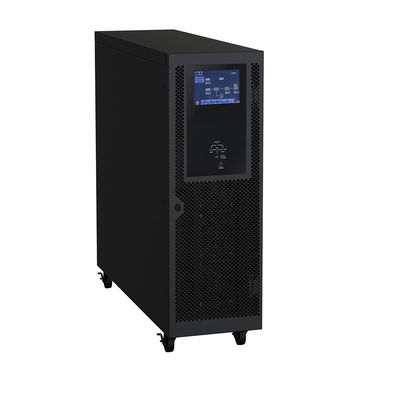

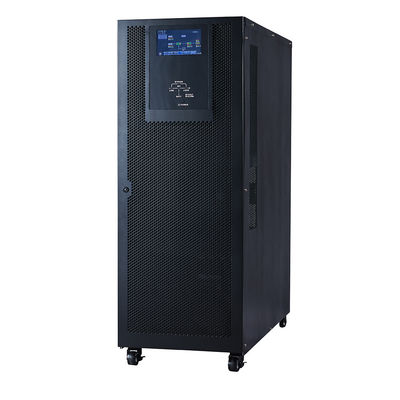

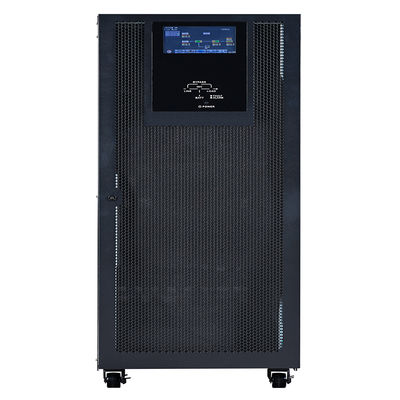

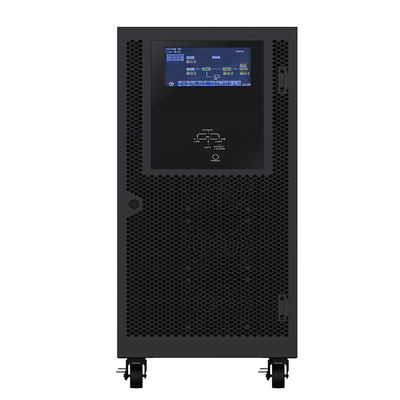

180K 180KVA 180KW 180000W 180000VA 3 Phase Visench Fortress 3p3p Online Ups With IP20 Protection
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Model Number | Visench Fortress |
| Price | $2,331.00 - $11,176.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Phase | Three Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | COMPUTER | Electric Energy | 60000 Wh |
| Product Name | Fortress 3p3p | Rated Capacity | 60KVA-300KVA |
| Power Factor | 0.99 | Input Voltage | 3 X 38014001415 VAC (3Ph+N) |
| Output Voltage | 3 X 38014001415 VAC (3Ph+N) | IP Class | IP20 |
| Battery Type | External Battery | Temperature Compensation | Yes |
| Size(mm) | 1000x320x800 | Weight(Kgs) | 94/169/249/360 |
| Highlight | 180000VA Online UPS,180KW Online UPS,180KVA Online UPS |
||
Product Description
Product name | Fortress 3p3p |
Rated Capacity | 60KVA-300KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 38014001415 VAC (3Ph+N) |
Frequency | 40Hz ~70Hz |
Output Voltage | 3 x 38014001415 VAC (3Ph+N) |
IP Class | IP20 |
Battery Type | External Battery |
PHASE | 3-phase in / 3-phase out |
Harmonic Distortion | ≤ 2% THD (Linear Load);≤ 4% THD (Non-linear Load) |
Temperature Compensation | Yes |
Battery Mode | 94.50% |
Frequency Range | 46Hz~ 54Hz or 56Hz~ 64HZ |
Altitude** | <1000m for Nominal power |
Operating Temperature | 0-40°C |
Size(mm) | 1000x320x800 |
Weight(Kgs) | 94/169/249/360 |
MODEL | 60K | 100K | 120K | 180K | 200K | |||||
PHASE | 3-phase in /3-phase out | |||||||||
CABNET CAPACTY | 60KVA/60KW | 100KVA/100KW | 120KVA/120KW | 180KVA/180KW | 200KVA/200KW | |||||
BATTERY TYPE | Extermal Battery | |||||||||
PARALLEL CAPABILTY | 4 | |||||||||
PHVSICAL | ||||||||||
IP Class | IP20 | |||||||||
Dimension,DxWxH(mm) | 1000 x600x1200 | 1000×480x1600 | 1000x480x1600 | 1000×600x2000 | 1000x600x2000 | |||||
Not Weight (Kgs) | 334 | 517 | 557 | 826 | 866 | |||||
INPUT | ||
Nominal Voltage | 3*380/400/415 VAC (3Ph+N) | |
Voltage Range | 110-300 VAC @50%load;187-276 VAC @100%load | |
Nominal Frequency | 50/60Hz (Auto sensing) | |
Frequency Range | 40Hz-70Hz | |
Power Factor | 20.99 100%load | |
Harmonic Distortion (THDi) | <5% at full linear load | |
OUTPUT | ||
Nominal Voltage | 3x380/400/415 VAC (3Ph+N) | |
Vollage Regulation (Steady state) | ≤±1%Typical (balanced load) | |
Nominal Frequency | 50/60Hz | |
Frequency Range (Synchranized range) | 46Hz-54Hz or 56Hz-64Hz | |
Overioad Capabity | ≤110%for 1 hour,111%～125%for 10 mins,126%~150%for 1 min and>150%for 200ms | |
Harmonic Distortion | ≤2%THD (Linear Load) | |
EFFICIENCY | ||
AC Mode | 92.3% | |
ECO Mode | 95.8% | |
Battery Mode | 91.3% | |
BYPASS | ||
Nominal Voltage | 3x380/400/415 VAC(3Ph+N) | |
Voltage Range | 30%-+20% | |
Frequency Range | 46Hz-54Hz or 56Hz-64Hz | |
Overload Capabiity | ≤110%for 1 hour,111%~125%for 10 mins,126%-150%for 1 min and>150%for 200ms | |
BATTERY/CHARGER | ||
Nominal Voltage | +/-192V~+1-240V (Selectable) | |
Maximum Voltag | +/-240V(12Vx40 Pcs) | |
Minimum Voltage | +/-192V(12Vx32 Pcs | |
Floating Charge Voltage | 2.28V/Call(2.25-2.33 Selectable) | |
Boost Charging Voltage | 2.35V/Cel | |
Temperature Compensation | Yes | |
ENVIRONMENT | ||
Operating Temperature | 0-40℃ | |
Operating Humidity | 95 and non-condonsing | |
Altitude* | <1000m for Nominal power | |
MANAGEMENT | ||
Smart RS-232/USB | Supports WindowsFamily,Linux and MAC | |
Optional SNMP | Power management from SNMP manager and web browser | |
STANARDS | ||
Safety | IEC/EN 62040-1 | |
EMC | IEC/EN 62040-2 | |
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU
4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU
4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
