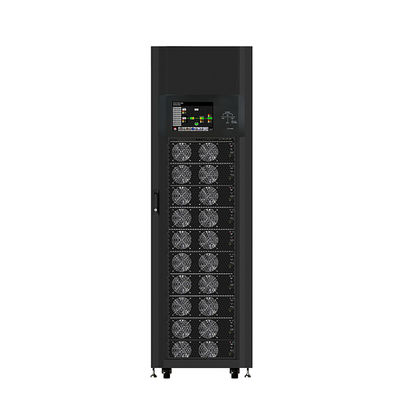

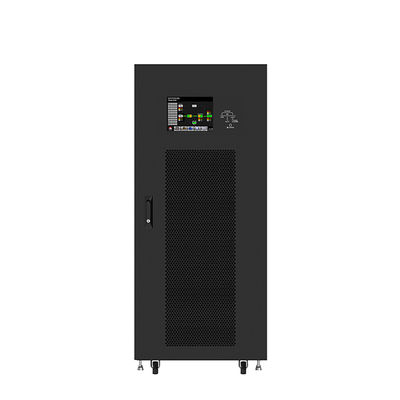

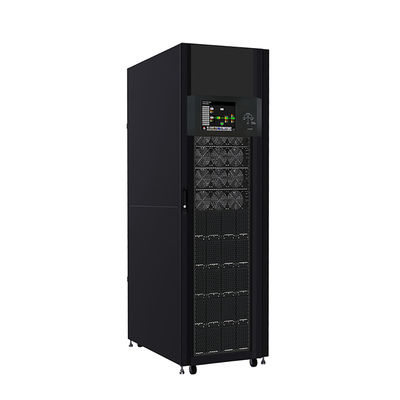

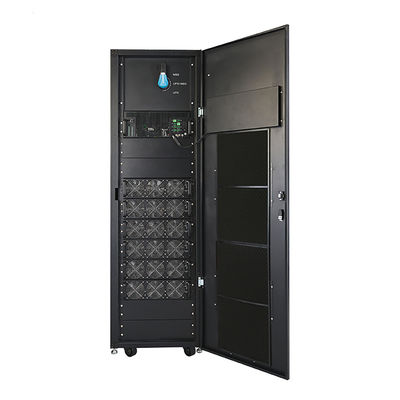

3 Phase 350KVA 350KW APlus 50kw Power Module OEM Online Ups For Computer/networking
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Model Number | Visench APlus 50kw Power Module |
| Price | $1,296.00 - $6,669.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Phase | Three Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | Computer/networking | Electric Energy | 50000 Wh |
| Product Name | APlus(50kw Power Module) | Rated Capacity | 300kva-500kva |
| Power Factor | 0.99 | Input Voltage | 3 X 380/400/415 VAC (3Ph+N) |
| Output Voltage | 3 X 380/400/415 VAC (3Ph+N) | Frequency | 50 To 60Hz |
| Temperature Compensation | Yes | Battery Type | External Battery |
| Size(mm) | 850 X600x2000 | Weight(Kgs) | 490/545/654/932/1020 |
| Highlight | 350KVA Online Ups,Computer Online Ups,350KW Online Ups |
||
Product Description
Product name | APlus（50kw power module） |
Rated Capacity | 300kva-500kva |
Power Factor | 0.99 |
Input Voltage | 3 x 380/400/415 VAC (3Ph+N) |
Frequency | 50/60Hz |
Output Voltage | 3 x 380/400/415 VAC (3Ph+N) |
Temperature Compensation | Yes |
Battery Type | External Battery |
PHASE | 3-phase in / 3-phase out |
Harmonic Distortion | < 4% @ 100% load |
Operating Temperature | 0~40°C |
Efficiency | 96.00% |
Frequency Range | 40Hz~70Hz |
Relative Humidity | 0~95% non-condensing |
Altitude* | <1000m for Nominal power |
Size(mm) | 850 x600x2000 |
Weight(Kgs) | 490/545/654/932/1020 |
MODEL | A+42U-300(PM-50)S | A+42U-300(PM-50) | A+42U-350(PM-50) | A+420-400(PM-50) | A+42U-500(PM-50) | |||||
PHASE | 3-phase in/3-phase out | |||||||||
CABINET CAPACITY* | 300KW | 300KW | 350KW | 400KW | 500KW | |||||
BATTERY TYPE | Fxfomal Battery | |||||||||
ONE POWER MODULE CAPACITY | 50KVA/50KW | |||||||||
MAX.POWER MODULE NO | 6 | 6 | 7 | 8 | 10 | |||||
PHYSICAL | ||||||||||
Cabinet Dimension (D xW x H)mm | 850x600x 2000 | 1065x600×2010 | 1100x600x2010 | 1100x600x2010 | 1065x1000x2000 | |||||
Net Weight (Kg) | 490 | 545 | 654 | 932 | 1020 | |||||
INPUT | ||
Nominal Votage | 3x380/400/415 VAC (3Ph+N) | |
Voltage Range | -20% ~+15% | |
Nominad Frequency | 50160Hz(Auto Sensing) | |
Fneguency Range | 40Hz~70Hz | |
Power Factor | >0.99 100%Load,>0.98 @50%Load | |
Harmonic Distortion (THDi) | <4%@100%load | |
OUTPUT | ||
Nominal Votage | 3x380/4001415 VAC(3Ph+N) | |
Valtage Regulation(Steady state) | ≤±1%Typical (balanced load);≤±2%Typlcal (unbalanced laad) | |
Nominad Frequency | 50V60Hz | |
Frequency Range(Synchronized) | 46Hz~54Hz or 56Hz～64Hz | |
Overdrload Capability | hour for ≤110%,10 mins tor 111%~125%,1 min for 126%~150 and 200ms tor>150% | |
Harmonic Distortion | ≤2%THD(Linear Load);≤4%THD(Non-linear Load) | |
Eficiency | 96% | |
BATTERY/CHARGER | ||
Nominal Valtage | +/_192V~-240V (Selectabe) | |
Maximum Voltage | +/_240V (12Vx 40 Pcs) | |
Minimum Voitage | +/_192V (12Vx32 Pcs) | |
Floating Charge Vltage | 2.28V/Cell(2.25~2.33 Selectable) | |
Boost Charging Voltage | 2.35W/Cell | |
Temperature Compensation | Yes | |
Maximum Charging Current (Per Power Module) | 12A(Adjustable) | |
ENVIRONMENT | ||
Operating Temperature | 0~40℃ | |
Relative Humidi | 0~95%non-condensing | |
Altitude* | ＜1000m tor Nominal Power | |
IP Protection | IP 20 | |
MANAGEMENT | ||
Smart RS-232/USB | Supports Windows Family.Linux and MAC | |
Optional SNMP | Power management from SNMP manager and web browser | |
STANDARDS | ||
Safety | IEC/EN 62040-1 | |
EMC | IEC/EN 62040-2 Category C3 | |
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU
4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
We are based in Guangdong, China, start from 2015,sell to Mid East(23.00%),Southeast Asia(21.00%),South America(20.00%),Africa(10.00%),Oceania(6.00%),South Asia(5.00%),North America(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(1.00%),Eastern Europe(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, PDU
4. why should you buy from us not from other suppliers?
Vesion is a global group company. Headquartered in Taipei, Vesion was founded in the 1980s. It has a history of producing industrial batteries and uninterruptible power supplies for more than 30 years. It has invested and built factories in Vietnam
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian
