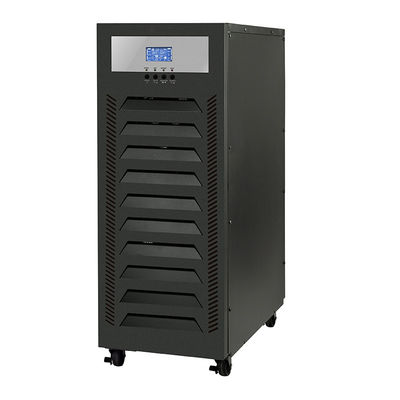

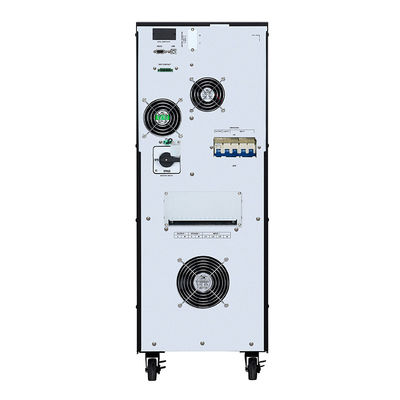

Visench Giant Elite 7.5KVA 7.5KW 7500W 7500VA 3Phase Tower UPS For Telecommunications
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Model Number | Visench Giant Elite |
| Price | $867.00 - $1,008.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Phase | Three Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | Telecommunications | Electric Energy | 6000 Wh |
| Product Name | Giant Elite 3p1p | Rated Capacity | 6kva-10kva |
| Voltage Regulation | ± 1% | Input Voltage | 3x360VAC1380VAC1400VAC(3Ph+N+G) |
| Output Voltage | 208VAC1220VAC/230VAC (Se Lectable) | Waveform | Pure Sinewave |
| Battery Type | 12V/ 9Ah | PHASE | 3-phase In / 1-phase Out |
| Size(mm) | 592x300x826 | Weight(Kgs) | 129/137/152/160/168 |
| Highlight | 7500W 3Phase Tower UPS,7500VA 3Phase Tower UPS,Telecommunications 3Phase Tower UPS |
||
Product Description
Product name | Giant Elite 3p1p |
Rated Capacity | 6kva-10kva |
Voltage Regulation | ± 1% |
Input Voltage | 3x360VAC1380VAC1400VAC(3Ph+N+G) |
Frequency | 40 Hz~ 55 Hz @ 50Hz system ; 56 Hz~ 64 Hz @ 60Hz system |
Output Voltage | 208VAC1220VAC/230VAC (Se lectable) |
Waveform | Pure Sinewave |
Battery Type | 12V/ 9Ah |
PHASE | 3-phase in / 1-phase out |
Harmonic Distortion | ≤ 3 % THD (Linear Load); ≤ 5 % THD (Non-inear Load) |
Current Crest Ratio | 3:01 |
Battery Mode | 92.00% |
Frequency Range | 50 Hz ± 0.1 Hz or 60Hz± 0.1 HZ |
Inverter to Bypass | Zero |
Operating Temperature | 0 ~ 50°C |
Size(mm) | 592x300x826 |
Weight(Kgs) | 129/137/152/160/168 |
MODEL | Giant Elite 31-6K(L) | Giant Elite 31-7.5K(L) | Giant Elite 31-10K(L) | |||||||||||
PHASE | 3-phase in /1-phase out | |||||||||||||
CAPACITY* | 6KVA/4.8KW | 7.5KVA/6KW | 10KVA/8KW | |||||||||||
INPUT | ||||||||||||||
Nominal Voltage | 3x360VAC/380VAC/400VAC(3Ph+N+G) | |||||||||||||
Voltage Range | 286VAC～493VAC @16 pcs of batteries;320VAC~493VAC @18 pcs of batteries | |||||||||||||
Freguency | 40 Hz～55 Hz@50Hz system;58 Hz~84 Hz @6OHz system | |||||||||||||
OUTPUT | ||||||||||||||
Output Voltage | 208VAC/220VAC/230VAC(Selectable) | |||||||||||||
Voltage Regulation | ±1% | |||||||||||||
Frequency Range (Synchronized Range) | 45Hz~55 Hz or 56 Hz~64 Hz | |||||||||||||
Frequency Range (Batt.Mode) | 50Hz±0.1 Hz or 60Hz±0.1 Hz | |||||||||||||
Curent Crest Ratio | 3:1 | |||||||||||||
Hamonic Distortion | ≤3%THD(Linear Load);≤5%THD (Non-linear Load) | |||||||||||||
Transfer Time | AC to DC | Zero | ||||||||||||
Inverter to Bypass | Zero | |||||||||||||
Waveform(Batt.Mode) | Pure Sinewave | |||||||||||||
EFFICIENCY | ||||||||||||||
AC Mode | 83% | |||||||||||||
Battery Mode | 92% | |||||||||||||
BATTERY | ||||||||||||||
Standard Model | Battery Type | 12V /9Ah | ||||||||||||
Battery Numbers* | 16 pcs | |||||||||||||
Recharging Time | 6 hours recover to 90% capacity | |||||||||||||
Charging Current (max.) | 2A | |||||||||||||
Charging Voltage | 218.4V±1% | |||||||||||||
Long-run Model | Battery Type | Depending on the applications | ||||||||||||
Numbers | 16 pcs | 18 pcs | 16 pcs | 18 pcs | 16 pcs | 18 pcs | ||||||||
Changing Current (max.) | Default:8A;2A/4A/BA(Adjustable) | |||||||||||||
Charging Voltage | 218.4V±1% | 245.7V±1% | 218.4V±1% | 245.7V±1% | 218.4V±1% | 245.7V±1% | ||||||||
INDICATORS | ||||||||||||||
LCD | UPS status,load level,battery level,inputloutput voltage and frequency,fault code/waming code | |||||||||||||
ALARM | ||||||||||||||
Battery Mode | Sounding every 4 seconds | |||||||||||||
Low Battery | Sounding every second | |||||||||||||
Overload | Sounding twice every second | |||||||||||||
Fault | Continously sounding | |||||||||||||
PHYSICAL | ||||||||||||||
Standard Model | Dimensions,DxWxH (mm) | 502x300x826 | 592x380x826 | 592x300x826 | 592x360x828 | 592x300x826 | 592x360x826 | |||||||
Net Weight (Kgs) | 129 | 137 | 152 | 160 | 160 | 168 | ||||||||
Long-run Model | Dimensions,DxWxH (mm) | 592x300x828 | ||||||||||||
Net Weight (Kgs) | 84 | 107 | 115 | |||||||||||
ENVIRONMENT | ||||||||||||||
Operating Temperature | 0~50°℃(battery life cycle will be shorten when temperature is above 25°℃) | |||||||||||||
Operating Humidity | <95% and non-condensing | |||||||||||||
Noise Level | Less than 80dBA @1 Meter | |||||||||||||
MANAGEMENT | ||||||||||||||
Smart RS-232/USB | Supports Windows 2000/2003/XPNista/2008/7/8/10,Linux,Unix,and MAC | |||||||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||||||
