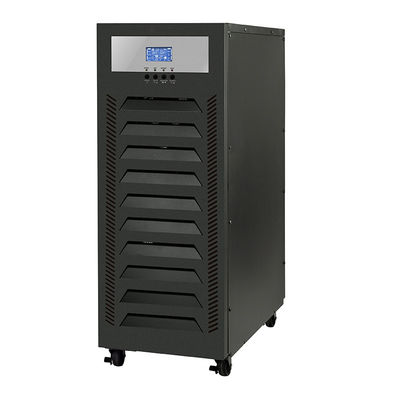

40KVA Visench Giant Elite 3/3 40KW 40000W Pure Sine Wave 3 Phase Online UPS For Networking
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Visench |
| Model Number | Visench Giant Elite |
| Price | $1,646.00 - $2,537.00/pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1year | Phase | Three Phase |
|---|---|---|---|
| Protection | Short Circuit | Type | On-line |
| Application | Networking | Electric Energy | 10000 Wh |
| Product Name | Giant Elite 3p3p | Rated Capacity | 10KVA To 40KVA |
| Voltage Regulation | ±1% | Input Voltage | 3 X 380VAC (3Ph + N) |
| Output Voltage | 3 X 380VAC (3Ph + N) | Frequency | 40 Hz~ 70 Hz |
| Waveform | Pure Sine Wave | Battery Type | 12V Sealed Lad-acid Battery |
| Size(mm) | 557 X 360 X898 | Weight(Kgs) | 108/130/146/220/256 |
| Highlight | 40000W Online UPS,40KW Online UPS,3 Phase Online UPS |
||
Product Description
Product name | Giant Elite 3p3p |
Rated Capacity | 10KVA-40KVA |
Voltage Regulation | ±1% |
Input Voltage | 3 x 380VAC (3Ph + N) |
Frequency | 40 Hz~ 70 Hz |
Output Voltage | 3 x 380VAC (3Ph + N) |
Waveform | Pure Sinewave |
Battery Type | 12V sealed lad-acid battery |
PHASE | 3-phase in/3-phase out |
Harmonic Distortion | <2% (Linear Load) ; <4% (Non-linear Load) |
Current Crest Ratio | 3:1 |
EPO Function | Yes |
Frequency Range | 50/60 Hz± 1% |
Inverter to Bypass | Zero |
Operating Temperature | 0~ 55°C |
Size(mm) | 557 x 360 x898 |
Weight(Kgs) | 108/130/146/220/256 |
Giant Elite 3-phase in/3-phase out Online UPS Selection Guide
MODEL | Giant Eite 3/3 10K | Giant Eite 3/3 15K | Giant Elite 3/3 20K | Giant Elite 3/3 30K | Giant Elite 3/3 40K | |||||||
PHASE | 3-phase in/3-phase out | |||||||||||
CAPACITY | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | |||||||
INPUT | ||||||||||||
Nominal Voltage | 3x380VAC(3Ph+N) | |||||||||||
Acceptable Voltage Range | 165VAC～280VAC(Ph-N);285VAC～485VAC(Ph-Ph) | |||||||||||
Frequency | 40 Hz~70 Hz | |||||||||||
OUTPUT | ||||||||||||
Nominal Voltage | 3x380VAC(3Ph+N) | |||||||||||
Voltage Regulation | ±1% | |||||||||||
Frequency Range (Synchronized Range) | 501/60 Hz±1% | |||||||||||
Current Crest Ratio | 3:01 | |||||||||||
Hamonic Distortion (THDv) | <2%(Linear Load);<4%(Non-linear Load) | |||||||||||
Transfer time | AC to DC | Zero | ||||||||||
Inverter to bypass | Zero | |||||||||||
Wavefom | Pure Sinewave | |||||||||||
BYPASS | ||||||||||||
Connection Type | Hardwire 4wire (3Ph+N) | |||||||||||
Input Voltage Range | 165~225VAC(Ph-N);235~285VAC(Ph-Ph) | |||||||||||
Overload Capability | 0%～150%continuous working;150%～180% 60 min~5 min ;>180%5 min | |||||||||||
SYSTEM | ||||||||||||
Efficiency | Line Mode | 89% | 90% | 91% | ||||||||
Battery Mode | 90% | 91% | 92% | |||||||||
ECO Mode (Non-parallel models) | Yes | |||||||||||
EPO Function | Yes | |||||||||||
BATTERY &CHARGER | ||||||||||||
Battery Type and Numbers | 12V sealed lad-acid batteryx32 pcs (29~32 ps adjustable) | |||||||||||
Nominal Battery Voltage | 384 VDC (based on 32pcs batteries) | |||||||||||
Charging Voltage Range | 290~435 VDC | |||||||||||
Charging Current | Default 10A,Maximum=Capacity (KW)/Battery voltage (real-time) *The maximum curent is never higher than 40A | Maximum 40A,5A@full load | ||||||||||
PHYSICAL | ||||||||||||
IP Protection | IP20 | |||||||||||
Dimensions,D x W x H (mm) | 557x360x898 | 683x450x1100 | 683x450x1100 | |||||||||
Net Weight (Kgs) | 108 | 130 | 146 | 220 | 256 | |||||||
ENVIRONMENT | ||||||||||||
Operating Temperature | 0~55°℃ | |||||||||||
Operating Humidity | 5~95%(non-condensing) | |||||||||||
MANAGEMENT | ||||||||||||
Smart RS-232/USB | Supports Windows*2000/2003/XPMista/2008/7/8/10,Linux and MAC | |||||||||||
Dry Contacts | Five signals:AC failure,low battery,UPS alarm,bypass and UPS fault | |||||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
